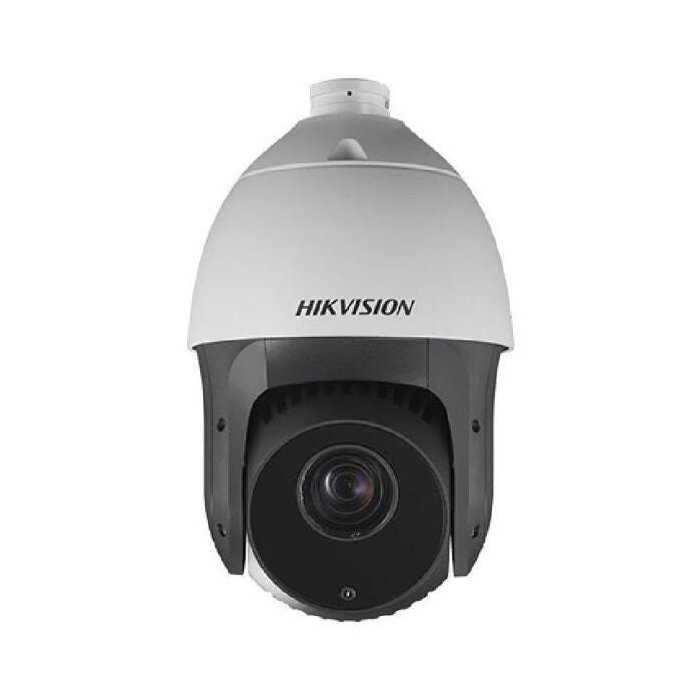

Câmera Speed Dome Hikvision 720P 1Mp Ds-2Ae5123Ti-A

Câmera Speed Dome Hd 720p/1080p Turbo Ir 150m Zoom Otico 23x/ Digital 16x - Ds-2ae5123ti-A - Hikvision
• Sensor de Imagem CMOS de 1.3MP
• 1280 x 720
• Zoom óptico de 23X, zoom digital de 16X
• DWDR
• Até 150m de distância IR
• Posicionamento inteligente em 3D
• Saída dupla Turbo HD e CVBS
Câmera
Image Sensor: 1/3 Progressive Scan CMOS
Effective Pixels: 1280(H)x720(V)
Sistema de sinal: PAL/NTSC
Minimum Illumination: F1.4, AGC On: Color: 0.05lux, B/W: 0.005lux
Balanço de branco: Auto / Manual / ATW / Indoor / Outdoor
AGC: Auto/Manual
BLC: ON/OFF
WDR: Support
Tempo do obturador: PAL: 1-1/10,000s e NTSC: 1-1/10,000s
Dia e noite: ICR
Digital Zoom: 16x
Privacy Masking: 8 privacy masks programmable
Auto Focus: Auto / Semi-automatic / Manual
Lentes
Focal Length: 4-92mm, 23x
Zoom Speed: Approx.3.0s(optical Wide-Tele)
Angle of View: 49-2.2 degree (Wide-Tele)
Minimum Working Distance: 10-1000mm(Wide-Tele)
Aperture Range: F1.4~F3.5
Pan e
Pan Range: 360°endless
Pan Speed: Pan Manual Speed: 0.1°~400°/s, Pan Preset Speed: 400°/s
Range: -15°-90° (Auto Flip )
Speed: Manual Speed: 0.1°~120°/s, Preset Speed: 200°/s
Proportional Zoom: Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset: 256
Patrol: 8 patrols, up to 32 presets per patrol
Pattern: 4 patterns, with the recording time not less than 10 minutes per pattern
Power loss recovery: Support
Park Action: Preset / Patrol / Pattern / Pan scan / scan / Random scan / Frame scan / Panorama scan
PTZ Position Display: ON/OFF
Freeze Frame: Support
Alarme
Alarm Input: 2
Alarm Output: 1
Entrada e Saída
Turbo HD Output: 1 turbo HD720p output, BNC
Monitor Output: 1.0vp-p / 75©, NTSC (or PAL) composite, BNC
Configurações Gerais
RS-485 Protocols: HIKVISION, Pelco-P, Pelco-D, self-adaptive
Menu Language: English / Chinese
Power Supply: 24V AC
Power Consumption: Max. 20W (Heater On), Max. 12w(heater Off)
Working Temperature/Humidity: -30 °C-65°C(-22°F-149°F)
90% or less
Protection Level: IP66 standard (outdoor dome)
TVS 4,000V lightning protection, surge protection and voltage transient protection
Mount Option: Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole;
Power box mount: DS-1602ZJ-box;Swan-neck mount: DS-1619ZJ
