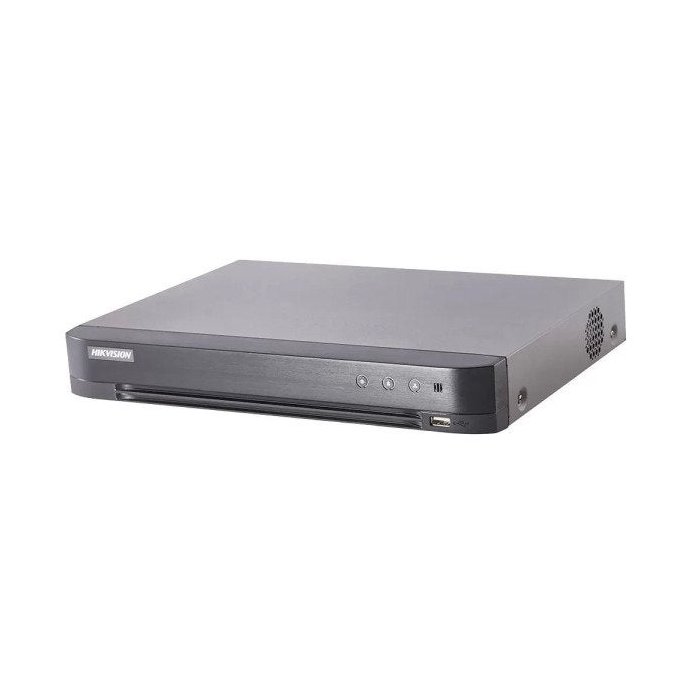

DVR T HD 4.0 Hikvision DS-7204HQHI-K1 3MP 4 Canais HD/ AHD/ Analogico

Informações do Produto • H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras • Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input • Connectable to H.265+/H.265/H.264+/H.264 IP cameras • Up to 3 MP resolution for recording • HDMI output at up to 4K (3840 × 2160) resolution for DS-7216HQHI-K1 • Long distance transmission over UTP and coaxial cable Informações Técnicas Video/Audio Input Audio Input: 1-ch Video Compression: H.265+/H.265/H.264+/H.264 Analog and HD-TVI video input: 4-ch,BNC interface (1.0Vp-p, 75 Ω)connection Supported camera types: Support HDTVI input: 3MP,1080P/25Hz, 1080P/30Hz,720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz, Support AHD input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz Support CVI input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz Support CVBS input Video Input Interface: BNC (1.0 Vp-p, 75Ω) Audio Compression: G.711u Audio Input Interface: RCA (2.0 Vp-p, 1 kΩ) Two-way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input) Video/Audio Output CVBS Output: 1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480 HDMI/VGA Output: 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz Recording resolution: When 1080p Lite mode not enabled: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF;When 1080p Lite mode enabled: 1080p lite/720p lite/VGA/WD1/4CIF/CIF Frame Rate: Main stream: When 1080p Lite mode not enabled: For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 3 MP@15fps 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) Video Bit Rate: 32 Kbps-6 Mbps Stream Type: Video/Video&Audio Two-way Audio: 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) Audio Output: 1-ch RCA(Linear, 1kΩ) Audio Bit Rate: 64kbps Dual Stream: Support Playback Resolution: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF Synchronous Playback: 4-ch Network management Remote connections: 128 Network protocols: TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS,ONVIF Hard Disk Driver Interface Type: 1 SATA Interface Capacity: Up to 6 TB capacity for each disk External Interface Network Interface: 1; 10M / 100M self-adaptive Ethernet interface USB Interface: 2 USB 2.0 Interfaces Serial Interface: 1; standard RS-485 serial interface, half-duplex General Power Supply: 12V DC Consumption: ≤ 6W(without hard disks) Working Temperature: -10 ºC to +55 ºC (14 ºF to 131 ºF) Working Humidity: 10% to 90% Dimensions: 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) Weight: ≤ 1.16 kg (2.6 lb)
