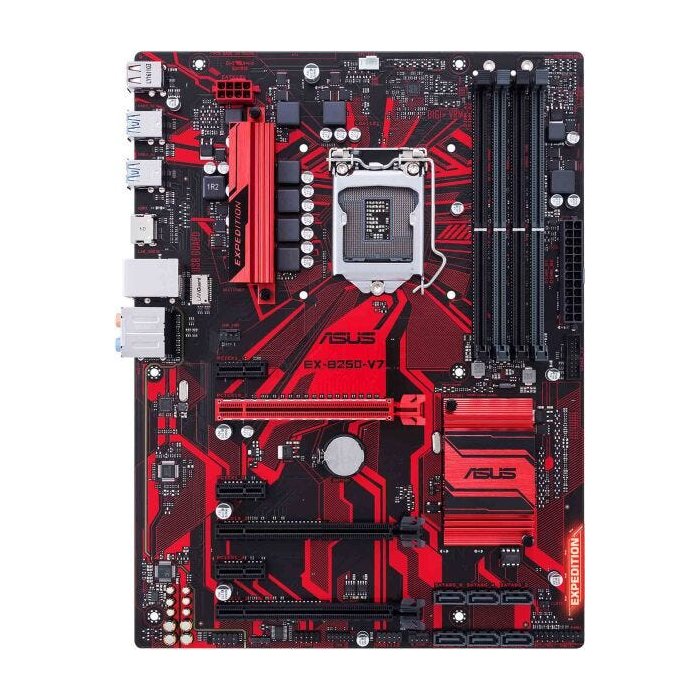

Placa Mãe Gamer e Mineração Asus DDR4 ATX Socket LGA1151 Intel B250 - EX-B250-V7 Seminova

Atenção, produto seminovo sem caixa OEM.
Especificações

Marca
ASUS

Modelo
EX-B250-V7

General

•
  Chipset Type
  Intel B250



•
  Compatible Processors
  Pentium, Celeron, Core i5, Core i3, Core i7 (supports 6th and 7th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron)



•
  Processor Socket
  LGA1151 Socket



•
  Max Processors Qty
  1



•
  Manufacturer
  Asus


Expansion / Connectivity

•
  Expansion Slots
  1 x CPU
  4 x DIMM 288-pin
  1 x PCIe 3.0 x16
  1 x PCIe 3.0 x16 (x4 mode)
  3 x PCIe 3.0 x1



•
  Storage Interfaces
  SATA-600 -connectors: 6 x 7pin Serial ATA - 6 devices



•
  Internal Interfaces
  4 x USB 2.0 - header
  2 x USB 3.1 Gen 1 - header
  1 x audio - header
  1 x serial - header



•
  Power Connectors
  24-pin main power connector, 8-pin ATX12V connector


Processor

•
  Max Supported Qty
  1



•
  Installed Qty
  0


Interface Provided

•
  Qty
  1, 4



•
  Type
  HDMI, LAN (Gigabit Ethernet), USB 2.0, USB 3.1 Gen 1, audio line-in, audio line-out, audio line-out (center/subwoofer), audio line-out (rear), audio line-out (side surround), microphone



•
  Connector Type
  mini-jack


Networking

•
  Data Link Protocol
  Ethernet, Fast Ethernet, Gigabit Ethernet



•
  Network Controller
  Intel I219V



•
  Network
  Gigabit Ethernet


Processor / Memory / Storage

•
  Max Supported Qty
  1


Memory

•
  Max Allocated RAM Size
  1024 MB


Miscellaneous

•
  Product Type
  motherboard



•
  Included Accessories
  I/O back plate


Audio

•
  Audio Codec
  Realtek ALC887



•
  Compliant Standards
  High Definition Audio


Video

•
  Video Output
  graphics adapter (CPU required)


Graphics

•
  Max Allocated RAM Size
  1024 MB


Audio Output

•
  Compliant Standards
  High Definition Audio



•
  Type
  sound card



•
  Audio Codec
  Realtek ALC887



•
  Audio
  High Definition Audio (8-channel)


RAM

•
  Max Supported Size
  64 GB



•
  Features
  Intel Extreme Memory Profiles (XMP), dual channel memory architecture


LAN

•
  Network Interfaces
  Gigabit Ethernet



•
  Network Controller
  Intel I219V


Supported RAM

•
  Bus Clock
  2400 MHz, 2133 MHz



•
  Registered or Buffered
  Unbuffered



•
  Features
  Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)



•
  Max Size
  64 GB



•
  Technology
  DDR4



•
  Supported RAM Integrity Check
  Non-ECC


Header

•
  Brand
  ASUS



•
  Product Line
  ASUS



•
  Model
  EX-B250-V7



•
  Packaged Quantity
  1



•
  Compatibility
  PC


Mainboard

•
  Form Factor
  ATX



•
  Processor Socket
  LGA1151 Socket



•
  Compatible Processors
  Celeron, Core i3, Core i5, Core i7, Pentium



•
  Compatible Processors Comments
  supports 6th and 7th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron



•
  Chipset Type
  Intel B250



•
  Supported RAM Technology
  DDR4 SDRAM



•
  Supported RAM Speed
  2133 MHz, 2400 MHz



•
  Supported RAM Integrity Check
  non-ECC



•
  Supported RAM (Registered or Buffered)
  unbuffered



•
  RAM Slots
  4 DIMM slots



•
  Power Connectors
  24-pin main power connector, 8-pin ATX12V connector


Mainboard Features

•
  BIOS Type
  AMI



•
  BIOS Features
  ACPI 6.0 support, ASUS EZ Flash 3, ASUS Quiet Thermal Solution, DMI 3.0 support, UEFI BIOS



•
  Sleep / Wake Up
  wake on LAN (WOL), wake on PME



•
  Hardware Features
  AMD CrossFireX technology support, ASUS 5X Protection III, ASUS DIGI+ VRM, ASUS EZ DIY, ASUS Fan Xpert 2+, ASUS Overvoltage Protection, ASUS Q-Design, ASUS SafeSlot Core, ASUS Stainless Steel Back I/O, ASUS iCafe Labs Certified, CrashFree BIOS 3, ESD Guards, Fanless Design Heatsink, Intel Turbo Boost Technology 2.0, LANGuard, Q-Slot, USBGuard, anti-pop function, anti-theft memory


Interfaces

•
  Storage
  Serial ATA-600



•
  Storage Ports
  6 x SATA-600



•
  USB 3.0 / FireWire
  USB 3.1 Gen 1



•
  USB / FireWire Ports Configuration (Active)
  4 x USB 3.1 Gen 1 + 4 x USB 2.0


Expansion Slots

•
  Total Qty
  1, 3, 4



•
  Slot Comments
  x4 mode



•
  Type
  CPU, DIMM 288-pin, PCIe 3.0 x1, PCIe 3.0 x16


Dimensions & Weight

•
  Width
  12 in



•
  Depth
  9 in


Software

•
  Software Included
  ASUS AI Charger, ASUS AI Suite III, ASUS EZ Flash 3, ASUS EZ Update


Video Memory

•
  Max Allocated RAM Size
  1024 MB


Storage Interfaces

•
  Interface
  Serial ATA-600



•
  Connector(s)
  6 x 7pin Serial ATA



•
  Supported Devices Qty
  6


Internal Interfaces

•
  Type
  USB 2.0, USB 3.1 Gen 1, audio, serial



•
  Connector Type
  header



•
  Qty
  1, 2, 4


Features

•
  BIOS Type
  AMI



•
  Hardware Features
  ASUS Q-Design, ESD Guards, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Fanless Design Heatsink, AMD CrossFireX technology support, ASUS Stainless Steel Back I/O, anti-pop function, ASUS Fan Xpert 2+, LANGuard, ASUS Overvoltage Protection, ASUS iCafe Labs Certified, USBGuard, ASUS 5X Protection III, ASUS SafeSlot Core, anti-theft memory



•
  BIOS Features
  ASUS Quiet Thermal Solution, UEFI BIOS, ASUS EZ Flash 3, DMI 3.0 support, ACPI 6.0 support



•
  Sleep / Wake Up
  Wake on LAN (WOL), wake on PME
