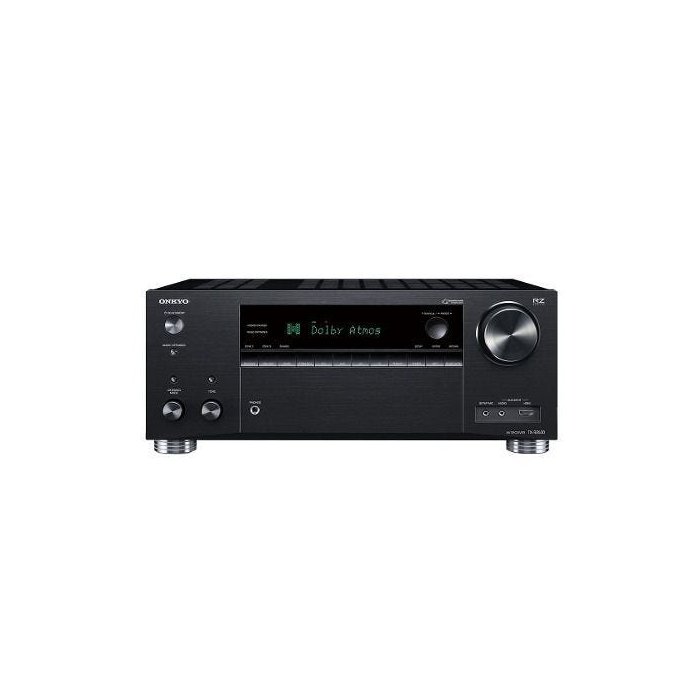

Receiver Onkyo Tx-Rz630 9.2 Canais

9.2-Channel Network A/V Receiver 90 W/Ch (8 Ohms), 215 W/Ch (6 Ohms) Native DTS:X? and Dolby Atmos® to 5.2.4 Channels Powered Zone 2 and Zone 3 speaker outputs Chromecast built-in, AirPlay, Wi-Fi®, and Bluetooth® Especificações do Produto Amplifier Section All Channel 90 W/Ch (8 Ohms, 20 Hz-20 kHz, 0.08% THD, 2 Channels Driven, FTC) 215 W/Ch (6 Ohms, 1 kHz, 10% THD, 1 Channel Driven) Dynamic Power 240 W (3 Ohms, Front) 210 W (4 Ohms, Front) 120 W (8 Ohms, Front) THD+N (Total Harmonic Distortion + Noise) 0.08% (20 Hz-20 kHz, half power) Input Sensitivity and Impedance 200 mV/82 k-ohms (Line) 3.5 mV/47 k-ohms (Phono MM) Rated RCA Output Level and Impedance 1 V/470 Ohms (Sub pre-out) 1 V/2.3 k-Ohms (Zone Pre Out) 1 V/200 mV/470 ohms (Zone pre/line out) Frequency response 5 Hz?100 kHz/+1 dB, -3 dB (Direct Mode) Phono Overload 70 mV (MM, 1 kHz, 0.5%) Tone Control 10 dB, 20 Hz (Bass) 10 dB, 20 kHz (Treble) Signal-to-Noise Ratio 106 dB (Line, IHF-A) 80 dB (Phono, IHF-A) Speaker Impedance 4 ohms?16 ohms General Power Supply AC 120 V~, 60 Hz Power Consumption 740 W No-Sound Power Consumption 70 W Standby Power Consumption 0.15 W Dimensions (W x H x D) 17 1/8" x 6 15/16" x 14 15/16" (435 x 177 x 379 mm) Weight 22.5 lbs (10.2 kg)
